Denso 6 Pin Throttle Pedal and Idle speed motor connector

Denso 6 Pin Throttle Pedal Connector

The Denso 6 pin throttle pedal connector is a replacement plug for throttle pedal position sensors, idle air control valves, and throttle body assemblies on a range of Toyota, Nissan, and Mazda applications. This kit is commonly used for wiring harness repairs, engine swaps, and drive-by-wire conversions on Japanese performance vehicles.

Disclaimer: Connector identification is based on visual appearance only. We cannot guarantee this connector will fit your specific application. Please compare your existing connector against the product images before purchasing.

This Denso 6 pin connector appears across multiple control systems: throttle pedal position sensors on Nissan Z33 and Infiniti G35 models, idle speed control motors on Toyota JZ-series engines, and electronic oil metering pumps on Mazda rotaries. The same connector design is shared across throttle body and idle control applications, making it a versatile option for both sensor replacements and custom harness builds.

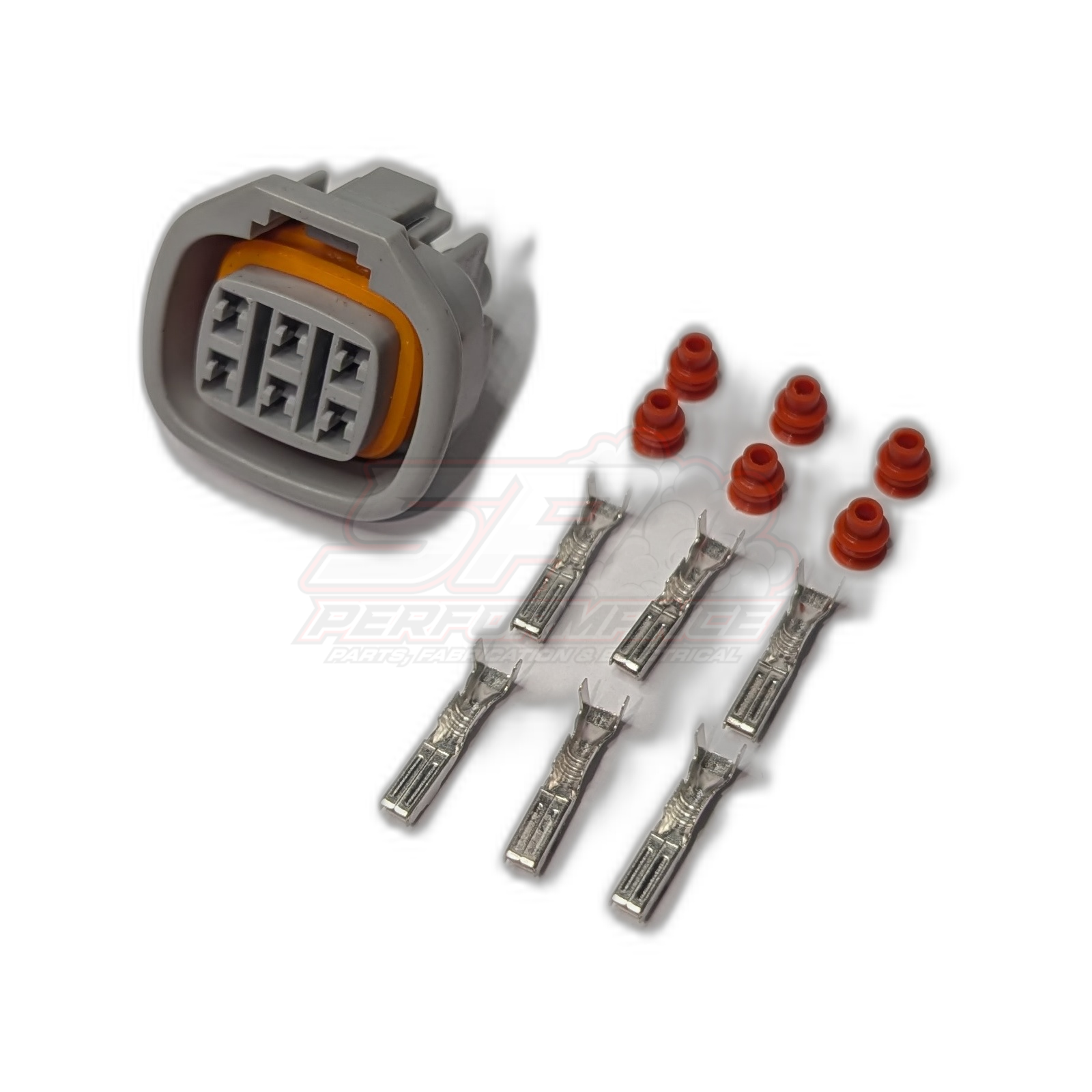

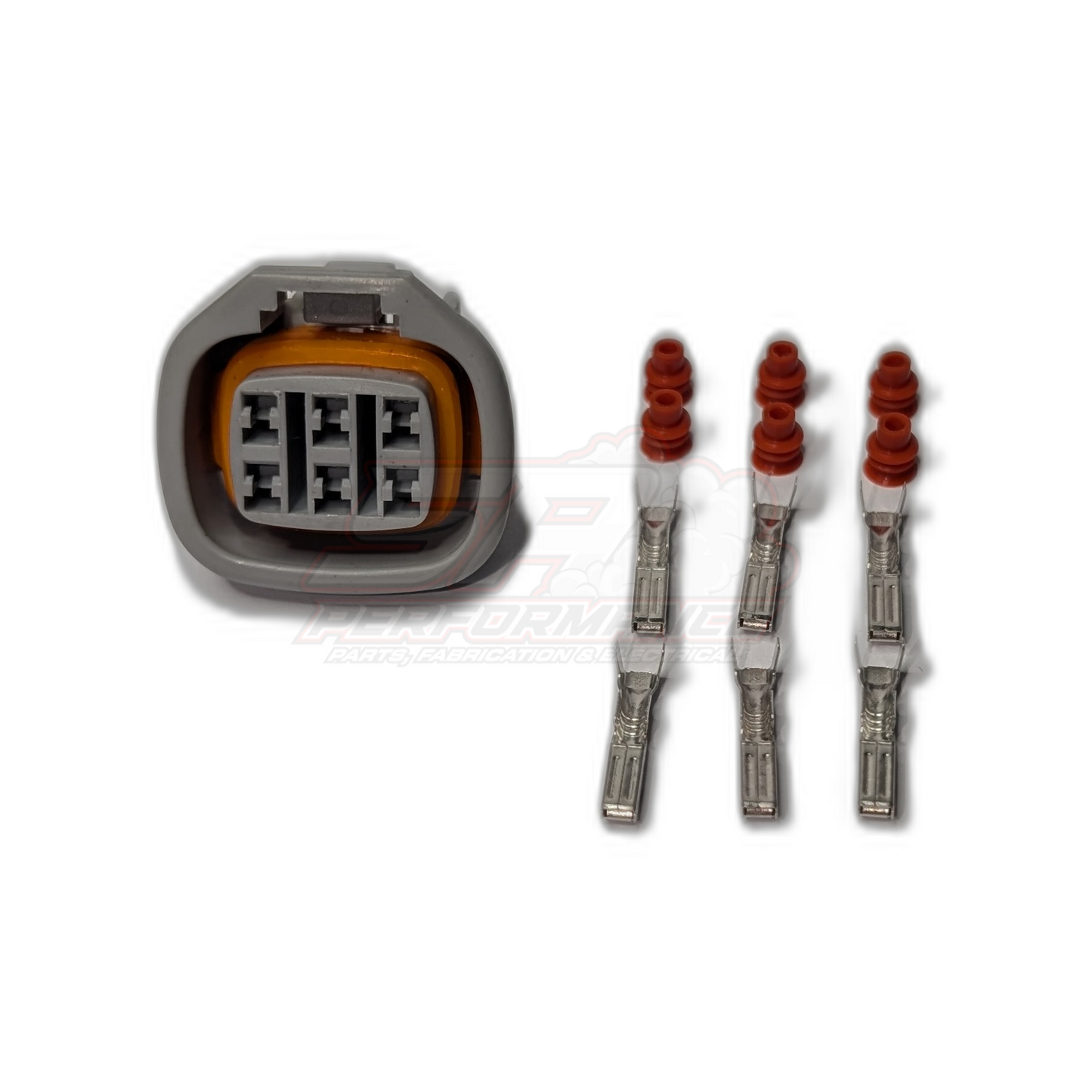

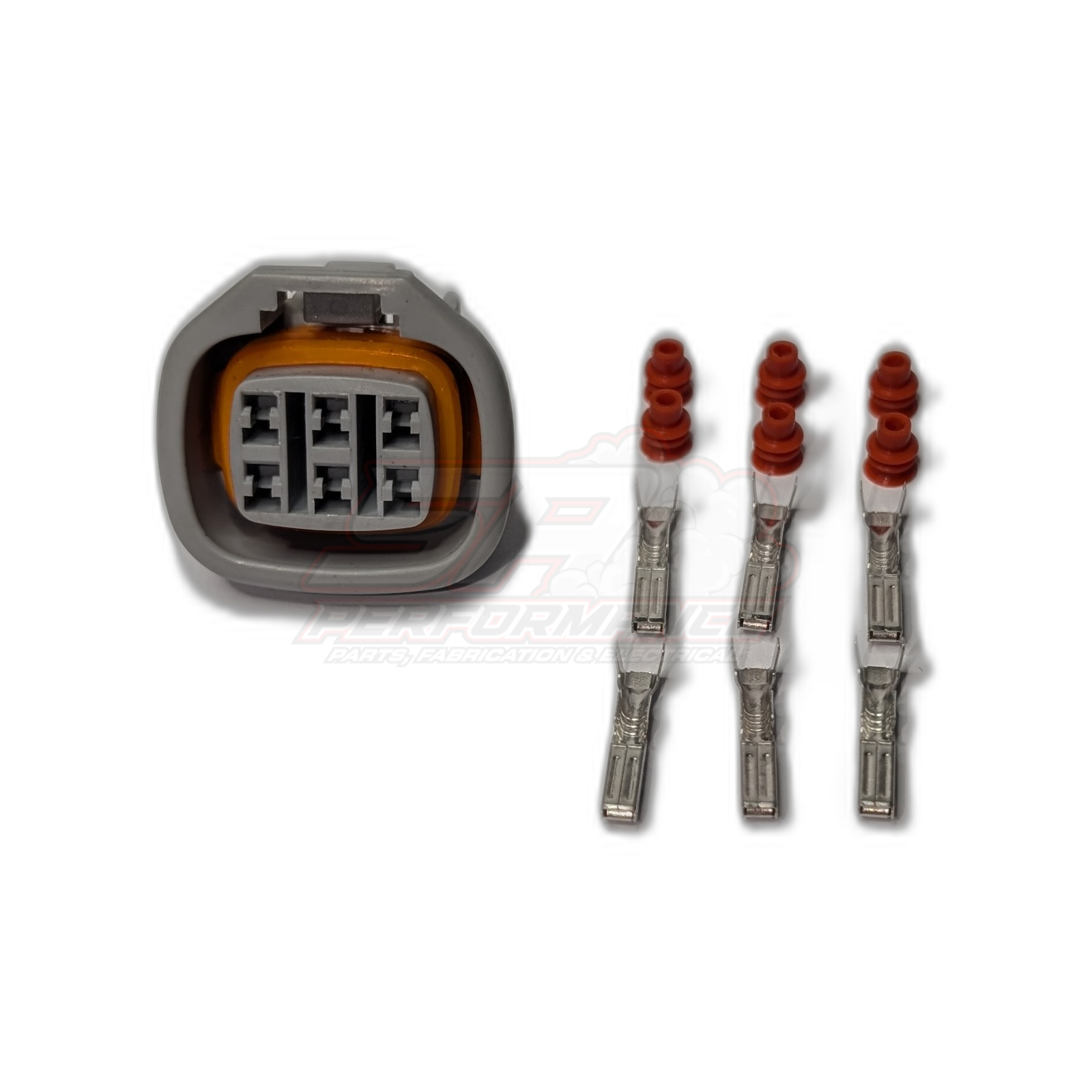

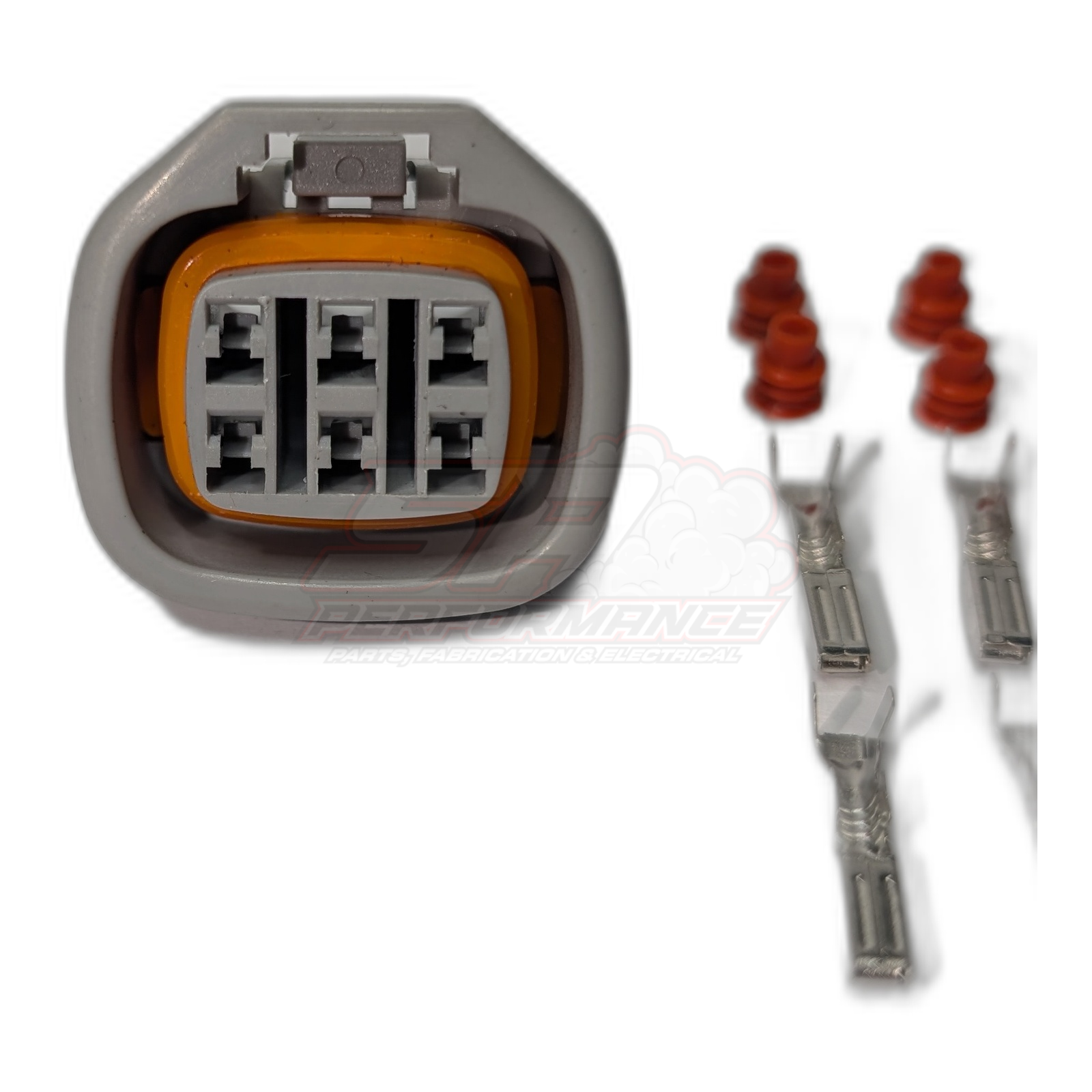

Kit includes:

• 1× connector housing
• 6× terminals
• 6× seals

Vehicle fitment includes (but not limited to):

• Toyota 1JZ-GE idle control stepper motor
• Toyota 1JZ-GTE idle control stepper motor
• Toyota 1JZ throttle body and IAC
• Toyota 2JZ-GE idle control stepper motor
• Toyota 2JZ-GTE idle control stepper motor
• Toyota 1UZ-FE (non-VVTi) idle control stepper motor
• Toyota Landcruiser 100 Series (1HD-FTE engine) idle control stepper motor
• Nissan 350Z (Z33) throttle pedal position sensor
• Nissan Infiniti G35 throttle pedal
• Mazda RX7 FC (Series 5) electronic oil metering pump
• Mazda RX7 FD electronic oil metering pump

Cross-reference part numbers: Toyota 90980-11144, Manufacturer 6189-0029

Ideal for: throttle pedal upgrades, idle control valve replacement, engine harness repairs, and drive-by-wire conversions.

Disclaimer: Connector identification is based on visual appearance only. We cannot guarantee this connector will fit your specific application. Please compare your existing connector against the product images before purchasing.
